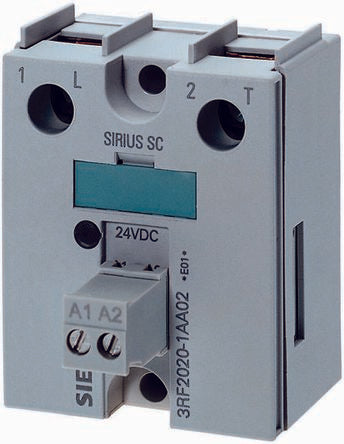

Siemens 20 A SPNO Solid State Relay, Zero Crossing, Chassis Mount, Thyristor, 230 V Maximum Load [3RF2020-1AA02]; 472-8954
by Siemens
0₫
Mã kho: 4728954
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.1 A |
Maximum Load Current | 20 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 24 V |
Maximum Load Voltage | 230 V |
Minimum Control Voltage | 15 V dc |
Maximum Control Voltage | 24 V dc |
Switching Type | Zero Crossing |
Contact Configuration | SPNO |
Terminal Type | Screw |
Output Device | Thyristor |
Maximum Turn On Time | 1 (+1/2 cycle) ms |
Dimensions | 45 x 48 x 57.6mm |
Control Voltage Range | 15 → 24 V dc |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -25°C |
Operating Temperature Range | -25 → +60°C |
Load Voltage Range | 24 → 230V |
Depth | 48mm |
Height | 57.6mm |
Off State Leakage Current | 10 mA |
Length | 45mm |
