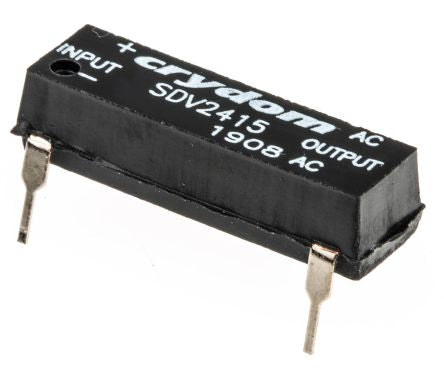

Sensata / Crydom 1.5 A rms Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V rms Maximum Load [SDV2415]; 244-9019
0₫
Mã kho: 2449019
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.025 A |
| Maximum Load Current | 1.5 A rms |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 280 V rms |
| Maximum Control Voltage | 10 V dc |
| Switching Type | Zero Cross |
| Output Device | SCR |
| Dimensions | 21.59 x 6.73 x 4.8mm |
| Load Voltage Range | 12 → 280V ac |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Control Voltage Range | 3.5 → 10 V dc |
| Operating Temperature Range | -30 → +80°C |
| Depth | 6.73mm |
| Length | 21.59mm |
| Height | 4.8mm |
