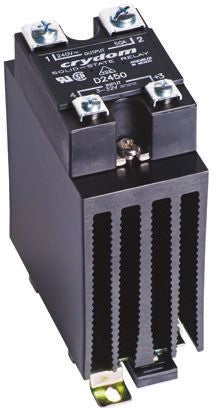

Sensata / Crydom 35 A Solid State Relay, Zero Cross, DIN Rail, 280 V ac Maximum Load [HS201DR-D2450]; 703-4619
0₫
Mã kho: 7034619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.04 A |
| Maximum Load Current | 35 A |
| Series | HS201DR |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 97 x 45 x 113.4mm |
| Height | 113.4mm |
| Load Voltage Range | 24 → 280V ac |
| Control Voltage Range | 3 → 32 V dc |
| Length | 97mm |
| Off State Leakage Current | 10 mA |
| Depth | 45mm |
