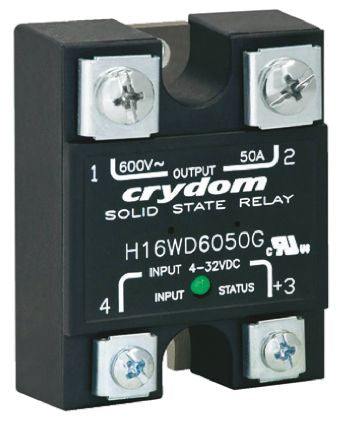

Sensata / Crydom 50 A Solid State Relay, DC, Panel Mount, 660 V ac Maximum Load [H16WD6050G-10]; 776-1096
0₫
Mã kho: 7761096
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 660 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | DC |
| Terminal Type | Screw |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 45.7 x 19.8 x 58.4mm |
| Load Voltage Range | 48 → 660V ac |
| Depth | 19.8mm |
| Control Voltage Range | 4 → 32 V dc |
| Length | 45.7mm |
| Operating Temperature Range | -40 → +80°C |
| Off State Leakage Current | 1 mA |
| Height | 58.4mm |
