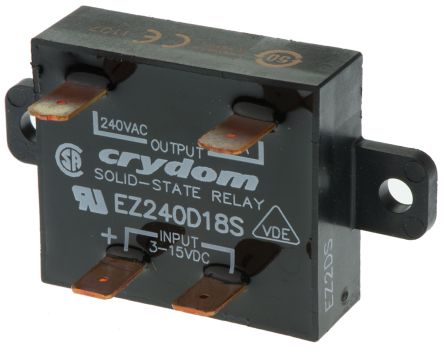

Sensata / Crydom 18 A rms Solid State Relay, Zero Cross, Panel Mount, SCR, 280 V Maximum Load [EZ240D18S]; 228-8612
0₫
Mã kho: 2288612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 18 A rms |
| Series | EZ |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | Zero Cross |
| Output Device | SCR |
| Dimensions | 43.9 x 38.1 x 13.9mm |
| Maximum Operating Temperature | +80°C |
| Depth | 38.1mm |
| Operating Temperature Range | -40 → +80°C |
| Control Voltage Range | 4 → 15 V dc |
| Load Voltage Range | 24 → 280V ac |
| Minimum Operating Temperature | -40°C |
| Height | 13.9mm |
| Length | 43.9mm |
