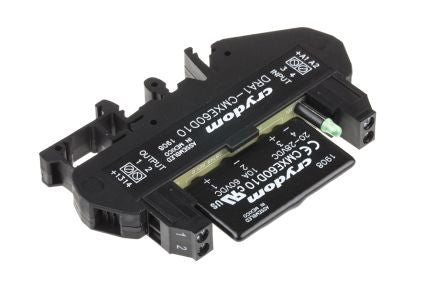

Sensata / Crydom 8 A Solid State Relay, DC, DIN Rail, 60 V dc Maximum Load [DRA1-CMXE60D10]; 701-8493
0₫
Mã kho: 7018493
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0 |
| Maximum Load Current | 0.333333333333333 |
| Series | DRA1 CMX |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 60 V dc |
| Minimum Control Voltage | 20 V dc |
| Maximum Control Voltage | 28 V dc |
| Switching Type | DC |
| Maximum Turn On Time | 1 ms |
| Dimensions | 89.6 x 10 x 61mm |
| Operating Temperature Range | -30 → +80°C |
| Length | 89.6mm |
| Off State Leakage Current | 100 μA |
| Height | 61mm |
| Depth | 10mm |
| Load Voltage Range | 1 → 60V dc |
| Control Voltage Range | 20 → 28 V dc |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
