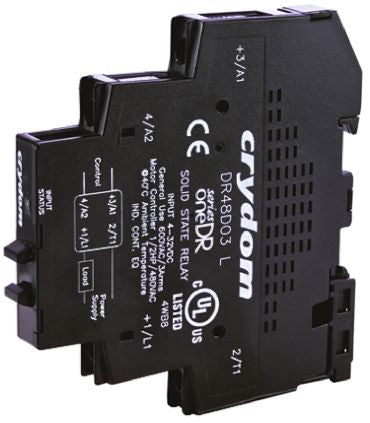

Sensata / Crydom 3 A Solid State Relay, Zero Cross, DIN Rail, 600 V ac Maximum Load [DR48D03]; 776-1761
0₫
Mã kho: 7761761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 0.125 |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 87.6 x 11 x 83.7mm |
| Off State Leakage Current | 0.1 mA |
| Height | 83.7mm |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 48 → 600V ac |
| Depth | 11mm |
| Length | 87.6mm |
| Operating Temperature Range | -30 → +80°C |
