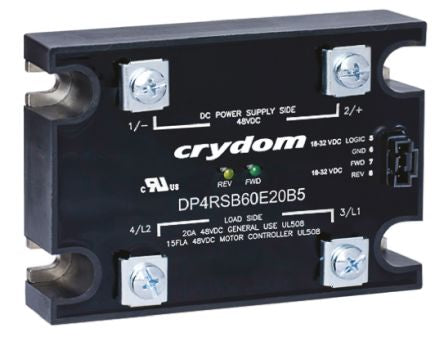

Sensata / Crydom 60 A Solid State Relay, DC, Panel Mount, MOSFET, 48 V dc Maximum Load [DP4R60D60]; 771-9931
0₫
Mã kho: 7719931
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.10 A |
Maximum Load Current | 60 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 1 V dc |
Maximum Load Voltage | 48 V dc |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 15 V dc |
Switching Type | DC |
Terminal Type | Screw |
Output Device | MOSFET |
Package Style | Module |
Dimensions | 104 x 73.5 x 20mm |
Off State Leakage Current | 20 μA |
Minimum Operating Temperature | -30°C |
Height | 20mm |
Maximum Operating Temperature | +80°C |
Control Voltage Range | 4 → 15 V dc |
Length | 104mm |
Load Voltage Range | 1 → 48V dc |
Operating Temperature Range | -30 → +80°C |
Depth | 73.5mm |
