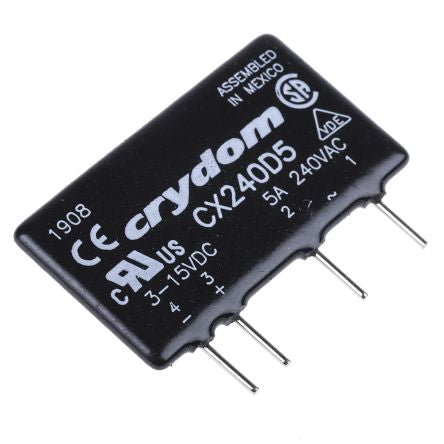

Sensata / Crydom 5 A Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V ac Maximum Load [CX240D5]; 291-2371
0₫
Mã kho: 2912371
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.06 A |
| Maximum Load Current | 0.208333333333333 |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 12 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | Zero Cross |
| Terminal Type | PCB Pin |
| Output Device | SCR |
| Dimensions | 43.1 x 7.6 x 25.4mm |
| Control Voltage Range | 4 → 15 V dc |
| Operating Temperature Range | -30 → +80°C |
| Maximum Operating Temperature | +80°C |
| Depth | 7.6mm |
| Minimum Operating Temperature | -30°C |
| Height | 25.4mm |
| Load Voltage Range | 12 → 280V ac |
| Length | 43.1mm |
