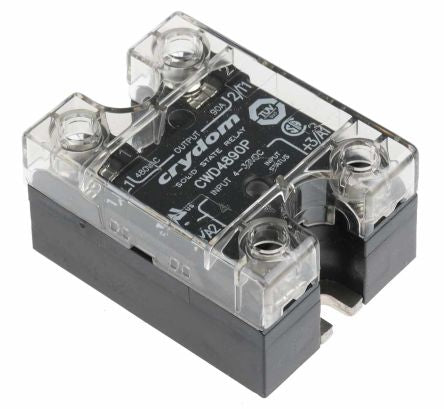

Sensata / Crydom 90 A SPST Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V ac Maximum Load [CWD4890P]; 736-0863
0₫
Mã kho: 7360863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.25 A rms |
Maximum Load Current | 90 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 48 V ac |
Maximum Load Voltage | 660 V ac |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero Cross |
Contact Configuration | SPST |
Terminal Type | Screw |
Output Device | SCR |
Maximum Turn On Time | 1/2 cycle |
Dimensions | 25.4 x 33 x 58.4mm |
Maximum Operating Temperature | +80°C |
Depth | 33mm |
Control Voltage Range | 4 → 32 V dc |
Operating Temperature Range | -40 → +80°C |
Length | 25.4mm |
Off State Leakage Current | 1 mA rms |
Minimum Operating Temperature | -40°C |
Load Voltage Range | 48 → 660V ac |
Height | 58.4mm |
