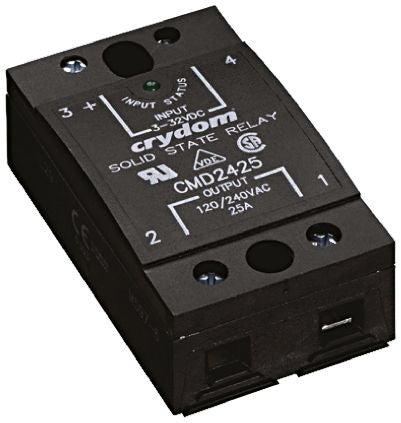

Sensata / Crydom 25 A Solid State Relay, Zero Cross, Panel Mount, SCR, 280 V Maximum Load [CMD2425]; 291-2753
0₫
Mã kho: 2912753
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A |
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Output Device | SCR |
| Dimensions | 44.5 x 76.2 x 29.2mm |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 24 → 280V ac |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Depth | 76.2mm |
| Length | 44.5mm |
| Operating Temperature Range | -40 → +80°C |
| Height | 29.2mm |
