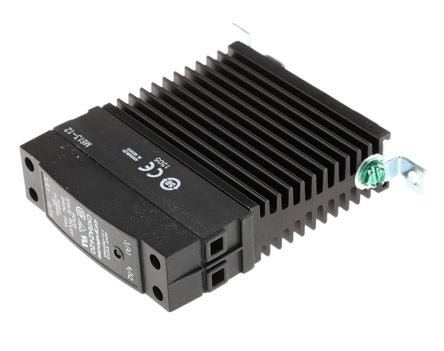

Sensata / Crydom 20 A rms Solid State Relay, Zero Cross, DIN Rail, SCR, 280 V rms Maximum Load [CKRA2420]; 361-7819
0₫
Mã kho: 3617819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A |
| Maximum Load Current | 20 A rms |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 280 V rms |
| Maximum Control Voltage | 280 V rms |
| Switching Type | Zero Cross |
| Output Device | SCR |
| Dimensions | 81.9 x 22.5 x 99mm |
| Load Voltage Range | 24 → 280V ac |
| Maximum Operating Temperature | +80°C |
| Length | 81.9mm |
| Depth | 22.5mm |
| Control Voltage Range | 90 → 280 V ac |
| Operating Temperature Range | -40 → +80°C |
| Height | 99mm |
| Minimum Operating Temperature | -40°C |
