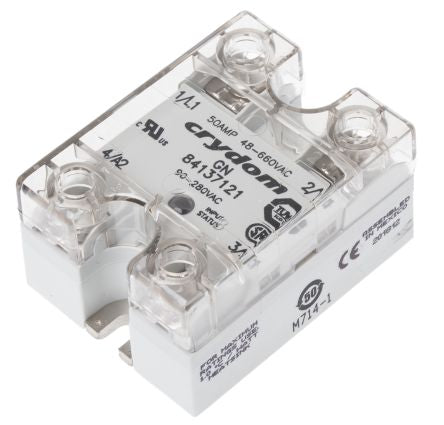

![Sensata / Crydom 84137121 1707330](http://nguyenxuong.com/cdn/shop/products/F1707330-01_444x425.jpg?v=1594453936)
Sensata / Crydom 50 Arms Solid State Relay, Zero Voltage Turn-On, Panel Mount, Triac, 660 V ac Maximum Load [84137121]; 170-7330
0₫
Mã kho: 1707330
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 100 mA rms |
Maximum Load Current | 50 A rms |
Mounting Type | Panel Mount |
Series | GN |
Minimum Load Voltage | 48 V ac |
Maximum Load Voltage | 660 V ac |
Minimum Control Voltage | 90 V ac |
Maximum Control Voltage | 280 V ac |
Switching Type | Zero Voltage Turn-On |
Terminal Type | Screw |
Output Device | TRIAC |
Maximum Turn On Time | 20 ms |
Dimensions | 44.5 x 30.9 x 57.3mm |
Maximum Operating Temperature | +80°C |
Special Features | LED Input Status Indicator |
Height | 57.3mm |
Capacitance | 8pF |
Control Voltage Range | 90 → 280 V ac |
Off State Leakage Current | 0.25 mArms |
Depth | 30.9mm |
Operating Temperature Range | -40 → +80°C |
Minimum Operating Temperature | -40°C |
Length | 44.5mm |
Load Voltage Range | 48 → 660V ac |
Relay Type | Solid State Relay |
