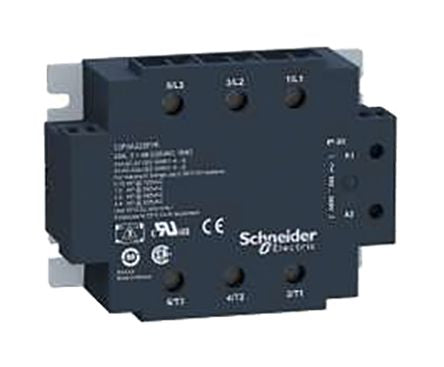

Schneider Electric 50 A 3P-NO Solid State Relay, AC Switching, Panel Mount, SCR, 530 V ac Maximum Load [SSP3A250BDT]; 922-2072
0₫
Mã kho: 9222072
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 530 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | AC |
| Contact Configuration | 3P-NO |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 8.33 ms |
| Dimensions | 101.3 x 97.8 x 35.5mm |
| Capacitance | 8pF |
| Standards Met | CE, CSA, UL |
| Depth | 97.8mm |
| Special Features | For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually |
| Control Voltage Range | 4 → 32 V dc |
| Relay Type | Three Channel Three Phase |
| Number of Poles | 3 |
| Load Voltage Range | 48 → 530V ac |
| Operating Temperature Range | -40 → +80°C |
| Length | 101.3mm |
| Off State Leakage Current | 3 mA |
| Height | 35.5mm |
