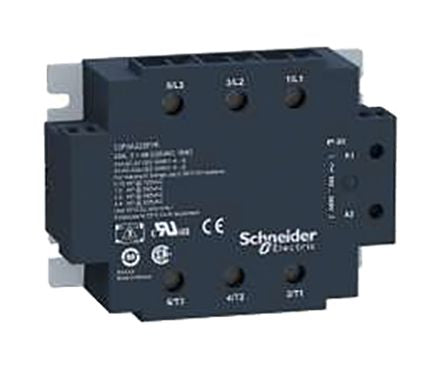

Schneider Electric 50 A 3P-NO Solid State Relay, Zero Cross, Panel Mount, SCR, 530 V ac Maximum Load [SSP3A250BDR]; 922-2060
0₫
Mã kho: 9222060
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.1 A |
Maximum Load Current | 50 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 48 V ac |
Maximum Load Voltage | 530 V ac |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero Cross |
Contact Configuration | 3P-NO |
Terminal Type | Screw |
Output Device | SCR |
Maximum Turn On Time | 8.33 ms |
Dimensions | 101.3 x 97.8 x 35.5mm |
Standards Met | CE, CSA, UL |
Relay Type | Three Channel Three Phase |
Number of Poles | 3 |
Capacitance | 8pF |
Control Voltage Range | 4 → 32 V dc |
Load Voltage Range | 48 → 530V ac |
Depth | 97.8mm |
Height | 35.5mm |
Off State Leakage Current | 3 mA |
Length | 101.3mm |
Operating Temperature Range | -40 → +80°C |
Special Features | For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually |
