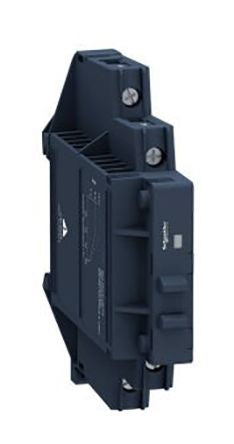

Schneider Electric 12 A SPNO Solid State Relay, DC Switching, DIN Rail, MOSFET, 60 V dc Maximum Load [SSM1D212BD]; 922-1975
0₫
Mã kho: 9221975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.0025 A |
| Maximum Load Current | 0 |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 60 V dc |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 0.6 ms |
| Dimensions | 18.29 x 83.69 x 87.66mm |
| Special Features | Integrated Heat Sinks for Effective Thermal Management & Space Savings |
| Standards Met | CE, CSA, UL |
| Operating Temperature Range | -30 → +80°C |
| Length | 18.29mm |
| Off State Leakage Current | 0.1 mA |
| Capacitance | 10pF |
| Number of Poles | 1 |
| Relay Type | Single Channel Relay |
| Height | 87.66mm |
| Depth | 83.69mm |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 1 → 60V dc |
