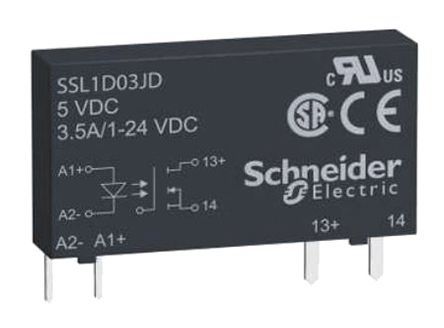

Schneider Electric 3.5 A SPNO Solid State Relay, DC Switching, PCB Mount, MOSFET, 24 V dc Maximum Load [SSL1D03JD]; 922-1846
0₫
Mã kho: 9221846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.001 A |
Maximum Load Current | 3.5 A |
Mounting Type | PCB Mount |
Minimum Load Voltage | 1 V dc |
Maximum Load Voltage | 24 V dc |
Minimum Control Voltage | 3 V dc |
Maximum Control Voltage | 12 V dc |
Switching Type | DC |
Contact Configuration | SPNO |
Terminal Type | PCB Pin |
Output Device | MOSFET |
Maximum Turn On Time | 0.12 ms |
Dimensions | 28 x 5 x 15mm |
Load Voltage Range | 1 → 24V dc |
Depth | 5mm |
Length | 28mm |
Operating Temperature Range | -20 → +80°C |
Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals |
Standards Met | CE, CSA, UL |
Relay Type | Single Phase |
Number of Poles | 1 |
Capacitance | 1.5pF |
Control Voltage Range | 3 → 12 V dc |
Height | 15mm |
Off State Leakage Current | 0.001 mA |
