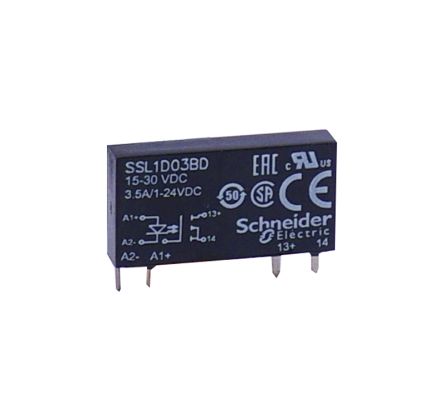

Schneider Electric 3.5 A SPNO Solid State Relay, DC Switching, PCB Mount, MOSFET, 24 V dc Maximum Load [SSL1D03BD]; 922-1837
0₫
Mã kho: 9221837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.001 A |
| Maximum Load Current | 3.5 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 24 V dc |
| Minimum Control Voltage | 15 V dc |
| Maximum Control Voltage | 30 V dc |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Maximum Turn On Time | 0.35 ms |
| Dimensions | 28 x 5 x 15mm |
| Depth | 5mm |
| Load Voltage Range | 1 → 24V dc |
| Control Voltage Range | 15 → 30 V dc |
| Number of Poles | 1 |
| Capacitance | 1.5pF |
| Relay Type | Single Phase |
| Standards Met | CE, CSA, UL |
| Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals |
| Operating Temperature Range | -20 → +80°C |
| Length | 28mm |
| Off State Leakage Current | 0.001 mA |
| Height | 15mm |
