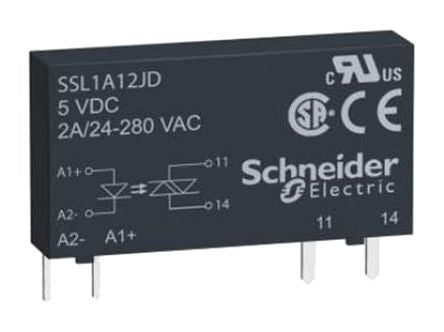

Schneider Electric 2 A SPNO Solid State Relay, AC Switching, PCB Mount, SCR, 280 V ac Maximum Load [SSL1A12BD]; 922-1815
0₫
Mã kho: 9221815
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 0.07 A |
Maximum Load Current | 0.0833333333333333 |
Mounting Type | PCB Mount |
Minimum Load Voltage | 24 V ac |
Maximum Load Voltage | 280 V ac |
Minimum Control Voltage | 15 V dc |
Maximum Control Voltage | 30 V dc |
Switching Type | AC |
Contact Configuration | SPNO |
Terminal Type | PCB Pin |
Output Device | SCR |
Maximum Turn On Time | 1/2 cycles |
Dimensions | 28 x 5 x 15mm |
Length | 28mm |
Off State Leakage Current | 4 mA |
Relay Type | Single Phase |
Standards Met | CE, CSA, UL |
Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals |
Operating Temperature Range | -20 → +80°C |
Capacitance | 1.5pF |
Number of Poles | 1 |
Depth | 5mm |
Load Voltage Range | 24 → 280V ac |
Control Voltage Range | 15 → 30 V dc |
Height | 15mm |
