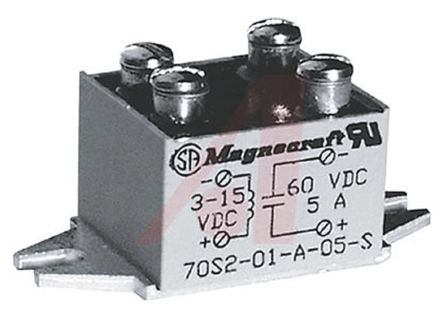

Schneider Electric 5 A SPNO Solid State Relay, DC, Panel Mount, MOSFET, 60 V dc Maximum Load [70S2-01-A-05-S]; 814-8204
0₫
Mã kho: 8148204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 0.208333333333333 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 3 V dc |
| Maximum Load Voltage | 60 V dc |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 75 ms |
| Dimensions | 31.2 x 26.2 x 22.9mm |
| Depth | 26.2mm |
| Control Voltage Range | 3 → 15 V dc |
| Operating Temperature Range | -40 → +100°C |
| Load Voltage Range | 3 → 60V dc |
| Height | 22.9mm |
| Off State Leakage Current | 10 mA |
| Length | 31.2mm |
