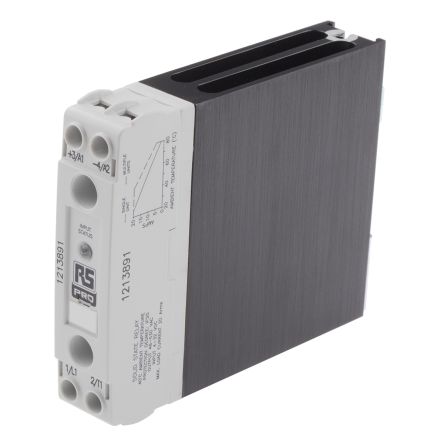

RS PRO 20 A SP Solid State Relay, DIN Rail, 530 Vrms Maximum Load; 121-3891
by RS PRO
0₫
Mã kho: 1213891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Load Current | 20 A |
Mounting Type | DIN Rail |
Minimum Load Voltage | 48 Vrms |
Maximum Load Voltage | 530 Vrms |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 32 V dc |
Contact Configuration | SP |
Terminal Type | Screw |
Dimensions | 93.2 x 22.5 x 116.5mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Length | 22.5mm |
Control Voltage Range | 4 → 32 V dc |
Capacitance | 8pF |
Depth | 116.5mm |
Load Voltage Range | 48 → 530Vrms |
Off State Leakage Current | 1 mA rms |
Height | 93.2mm |
Standards Met | RoHS Compliant |
Special Features | LED Indicator |
Relay Type | Solid State Relay |
