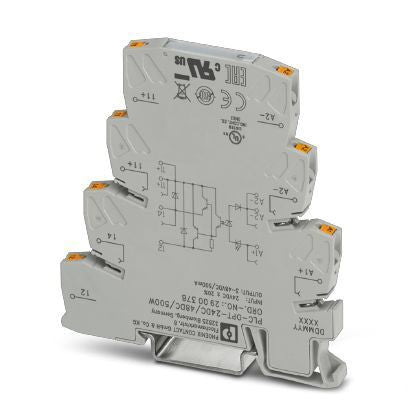

SSR Module PLC-OPT- 24DC/ 48DC/500/W [2900378]; 195-4836
0₫
Mã kho: 1954836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 1 mA |
| Maximum Load Current | 500 mA |
| Mounting Type | DIN Rail |
| Series | PLC-OPT |
| Minimum Load Voltage | 3 V dc |
| Maximum Load Voltage | 48 V dc |
| Minimum Control Voltage | 19.2 V dc |
| Maximum Control Voltage | 28.8 V dc |
| Terminal Type | Push In |
| Maximum Turn On Time | 0.15 (Typ.) ms |
| Dimensions | 6.2 x 86 x 80mm |
| Minimum Operating Temperature | -25°C |
| Depth | 86mm |
| Load Voltage Range | 3 → 48V dc |
| Operating Temperature Range | -25 → +60°C |
| Relay Type | Solid State Relay |
| Height | 80mm |
| Control Voltage Range | 19.2 → 28.8 V dc |
| Maximum Operating Temperature | +60°C |
| Length | 6.2mm |
