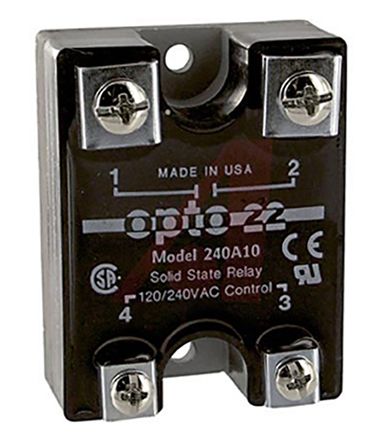

Opto 22 10 A Solid State Relay, AC, Screw Fitting, 240 V ac Maximum Load [240A10]; 888-7341
by Opto 22
0₫
Mã kho: 8887341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 0.416666666666667 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 12 V ac |
| Maximum Load Voltage | 240 V ac |
| Minimum Control Voltage | 85 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | AC |
| Terminal Type | Screw |
| Maximum Turn On Time | 0.5 cycles |
| Dimensions | 44.5 x 57.2 x 19.6mm |
| Load Voltage Range | 12 → 240V ac |
| Special Features | Hermetically Sealed, LED Indicator |
| Standards Met | CE, CSA, UL |
| Control Voltage Range | 85 → 280 V ac |
| Capacitance | 8pF |
| Depth | 57.2mm |
| Operating Temperature Range | -40 → +100°C |
| Length | 44.5mm |
| Off State Leakage Current | 14 mA |
| Height | 19.6mm |
