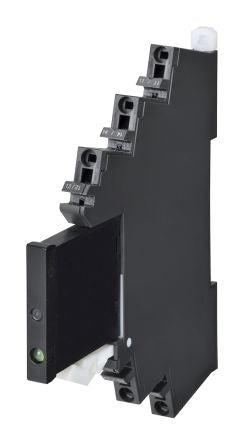

Omron 2 A SPDT Solid State Relay, AC, DIN Rail, Triac, 264 V ac Maximum Load [G3RV-SR500-AL AC230]; 111-3020
by Omron
0₫
Mã kho: 1113020
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A |
| Maximum Load Current | 0.0833333333333333 |
| Mounting Type | DIN Rail |
| Series | G3RV-SR |
| Minimum Load Voltage | 75 V ac |
| Maximum Load Voltage | 264 V ac |
| Maximum Control Voltage | 230 V ac |
| Switching Type | AC |
| Contact Configuration | SPNO |
| Terminal Type | Push In |
| Output Device | Triac |
| Maximum Turn On Time | 3 ms |
| Dimensions | 6.2 x 78 x 90mm |
| Operating Temperature Range | -30 → +55°C |
| Load Voltage Range | 75 → 264V ac |
| Off State Leakage Current | 5 mA |
| Length | 6.2mm |
| Height | 90mm |
| Standards Met | CE, CULus, TUV Certification |
| Special Features | High-Speed Opening and Closing SSR, Lower Profile than Conventional Products |
| Relay Type | Solid State Relay |
| Number of Poles | 1 |
| Depth | 78mm |
| Control Voltage Range | Maximum of 230 V ac |
