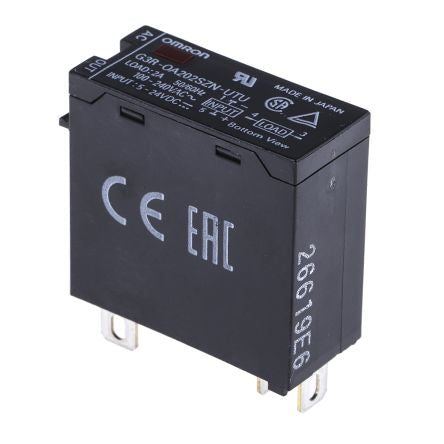

Omron 2 A Solid State Relay, Zero Crossing, DIN Rail, Triac, 240 V ac Maximum Load [G3ROA202SZNDC524]; 353-922
by Omron
0₫
Mã kho: 353922
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.05 A |
| Maximum Load Current | 0.0833333333333333 |
| Series | G3R-O |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 75 V ac |
| Maximum Load Voltage | 240 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | PCB Pin |
| Output Device | Triac |
| Dimensions | 28 x 13 x 29mm |
| Length | 28mm |
| Operating Temperature Range | -30 → +80°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
| Depth | 13mm |
| Load Voltage Range | 75 → 240V ac |
| Control Voltage Range | 4 → 32 V dc |
| Height | 29mm |
