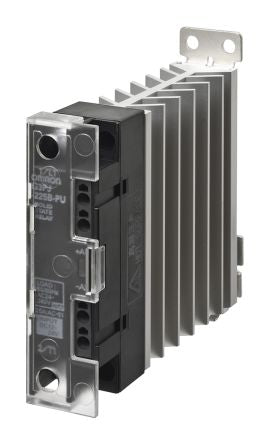

Omron 15 A SP Solid State Relay, Zero Crossing, DIN Rail, Triac, 264 V ac Maximum Load [G3PJ-215B-PU DC12-24]; 111-3038
by Omron
0₫
Mã kho: 1113038
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 15 A |
| Maximum Load Current | 15 A |
| Mounting Type | DIN Rail |
| Series | G3PJ |
| Minimum Load Voltage | 19 V ac |
| Maximum Load Voltage | 264 V ac |
| Minimum Control Voltage | 12V dc |
| Maximum Control Voltage | 24V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SP |
| Terminal Type | Push In |
| Output Device | Triac |
| Maximum Turn On Time | 1/2 cycle + 1 ms |
| Dimensions | 22.5 x 100 x 100mm |
| Special Features | Single-Phase SSR, Slim Design |
| Standards Met | CE, CULus, TUV Certification |
| Relay Type | Single Phase |
| Number of Poles | 1 |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -30 → +80°C |
| Length | 22.5mm |
| Off State Leakage Current | 10 mA |
| Height | 100mm |
| Depth | 100mm |
| Control Voltage Range | 12 → 24 V dc |
| Load Voltage Range | 19 → 264V ac |
