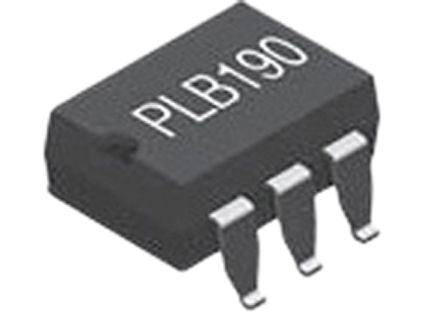

IXYS 130 mA rms/mA dc SP-NC Solid State Relay, DC, Surface Mount, Relay [PLB190S]; 906-1152
by IXYS
0₫
Mã kho: 9061152
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Load Current | 130 mA rms/mA dc |
Mounting Type | Surface Mount |
Switching Type | DC |
Contact Configuration | SP-NC |
Terminal Type | PCB Pin |
Output Device | Relay |
Package Style | Small - 6 Pin |
Maximum Turn On Time | 1 ms |
Dimensions | 8.382 x 6.35 x 3.302mm |
Standards Met | Certificate TUV B 09 07 49140 004, CSA, EN/IEC 60950, UL File E76270 |
Special Features | Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable |
Length | 8.38mm |
Off State Leakage Current | 1 μA |
Operating Temperature Range | -40 → +85°C |
Depth | 6.35mm |
Capacitance | 11pF |
Number of Poles | 1 |
Relay Type | OptoMOS |
Height | 3.3mm |
