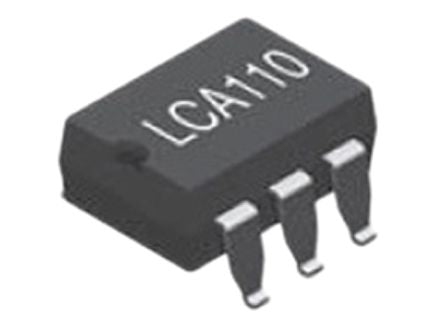

IXYS 120 mA rms/mA dc, 200 mA dc SPNO Solid State Relay, AC/DC, Surface Mount, MOSFET [LCA110LS]; 906-1127
by IXYS
0₫
Mã kho: 9061127
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 120 mA rms/mA dc, 200 mA dc |
| Mounting Type | Surface Mount |
| Switching Type | AC/DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | Small - 6 Pin |
| Maximum Turn On Time | 3 ms |
| Dimensions | 8.382 x 6.35 x 3.302mm |
| Depth | 6.35mm |
| Operating Temperature Range | -40 → +85°C |
| Off State Leakage Current | 1 μA |
| Length | 8.38mm |
| Number of Poles | 1 |
| Standards Met | Certificate TUV B 09 07 49140 004, CSA, EN/IEC 60950, UL File E76270 |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Relay Type | OptoMOS |
| Capacitance | 35pF |
| Height | 3.3mm |
