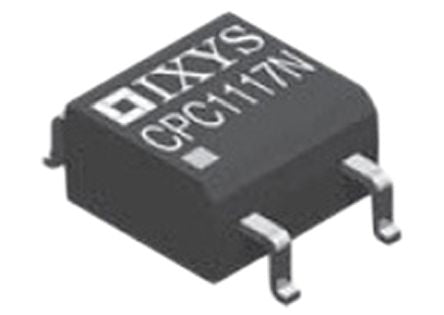

IXYS 150 mA rms/mA dc SP-NC Solid State Relay, DC, Surface Mount, MOSFET [CPC1117N]; 906-1039
by IXYS
0₫
Mã kho: 9061039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 150 mA rms/mA dc |
| Mounting Type | Surface Mount |
| Switching Type | DC |
| Contact Configuration | SP-NC |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | SOP |
| Maximum Turn On Time | 10 ms |
| Dimensions | 4.089 x 3.81 x 2.1203mm |
| Capacitance | 10pF |
| Depth | 3.81mm |
| Operating Temperature Range | -40 → +85°C |
| Off State Leakage Current | 1 μA |
| Length | 4.09mm |
| Standards Met | Certificate B 13 12 82667 003, CSA, EN/IEC 60950-1, UL File E76270 |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Relay Type | OptoMOS |
| Number of Poles | 1 |
| Height | 2.12mm |
