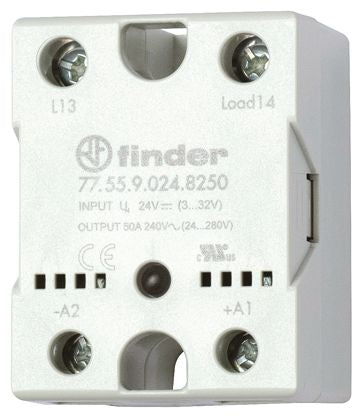

Finder 50 A SPNO Solid State Relay, Zero Crossing, Heatsink, 660 V ac Maximum Load [77.55.9.024.8650]; 800-2962
by Finder
0₫
Mã kho: 8002962
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 250 mA |
| Maximum Load Current | 50 A |
| Mounting Type | Heatsink |
| Series | Series 77 |
| Minimum Load Voltage | 43.2 V ac |
| Maximum Load Voltage | 660 V ac |
| Maximum Control Voltage | 24 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Package Style | Hockey Puck |
| Maximum Turn On Time | 10 ms |
| Dimensions | 44.5 x 36.4 x 57.7mm |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | 10 mA |
| Control Voltage Range | 24 V dc |
| Load Voltage Range | 43.2 → 660V ac |
| Length | 57.7mm |
| Depth | 44.5mm |
| Height | 36.4mm |
