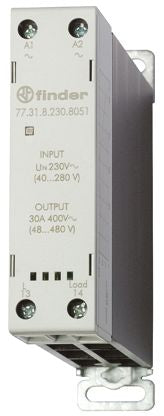

Finder 30 A SPNO Solid State Relay, Random, DIN Rail, 480 V ac Maximum Load [77.31.8.230.8071]; 800-2770
by Finder
0₫
Mã kho: 8002770
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 300 mA |
Maximum Load Current | 30 A |
Mounting Type | DIN Rail |
Series | Series 77 |
Minimum Load Voltage | 48 V ac |
Maximum Load Voltage | 480 V ac |
Maximum Control Voltage | 230 V ac |
Switching Type | Random |
Contact Configuration | SPNO |
Terminal Type | Screw |
Package Style | Hockey Puck |
Maximum Turn On Time | 2 ms |
Dimensions | 22.5 x 120.3 x 83.3mm |
Operating Temperature Range | -20 → +80°C |
Control Voltage Range | 230 V ac |
Depth | 120.3mm |
Load Voltage Range | 48 → 480V ac |
Length | 22.5mm |
Off State Leakage Current | 1 mA |
Height | 104.5mm |
