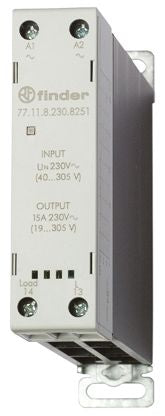

Finder 15 A SPNO Solid State Relay, Random, DIN Rail, 305 V ac Maximum Load [77.11.9.024.8251]; 800-2754
by Finder
0₫
Mã kho: 8002754
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA |
| Maximum Load Current | 15 A |
| Mounting Type | DIN Rail |
| Series | Series 77 |
| Minimum Load Voltage | 19 V ac |
| Maximum Load Voltage | 305 V ac |
| Maximum Control Voltage | 24 V dc |
| Switching Type | Random |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Package Style | Hockey Puck |
| Maximum Turn On Time | 1 ms |
| Dimensions | 22.5 x 120.3 x 83.3mm |
| Off State Leakage Current | 1 mA |
| Length | 22.5mm |
| Load Voltage Range | 19 → 305V ac |
| Depth | 120.3mm |
| Control Voltage Range | 24 V dc |
| Operating Temperature Range | -20 → +80°C |
| Height | 83.3mm |
