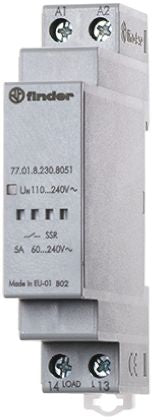

Finder 5 A SPNO Solid State Relay, Random, DIN Rail, 265 V ac Maximum Load [77.01.8.230.8051]; 711-4838
by Finder
0₫
Mã kho: 7114838
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA |
| Maximum Load Current | 0.208333333333333 |
| Mounting Type | DIN Rail |
| Series | Series 77 |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 265 V ac |
| Minimum Control Voltage | 110 V ac |
| Maximum Control Voltage | 240 V ac |
| Switching Type | Random |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Maximum Turn On Time | 9 ms |
| Dimensions | 17.5 x 60.8 x 84mm |
| Off State Leakage Current | 3.5 mA |
| Length | 17.5mm |
| Minimum Operating Temperature | -20°C |
| Height | 84mm |
| Control Voltage Range | 110 → 240 V ac |
| Depth | 60.8mm |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -20 → +70°C |
| Load Voltage Range | 48 → 265V ac |
