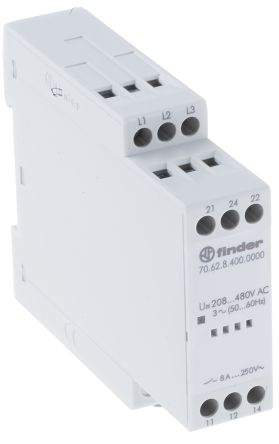

Finder 8 A DPDT Solid State Relay, AC, DIN Rail, 400 V ac Maximum Load [70.62.8.400.0000]; 800-2928
by Finder
0₫
Mã kho: 8002928
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 5 mA |
| Maximum Load Current | 0.333333333333333 |
| Series | Series 70 |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 250 V ac |
| Maximum Load Voltage | 400 V ac |
| Minimum Control Voltage | 208 V ac |
| Maximum Control Voltage | 480 V ac |
| Switching Type | AC |
| Contact Configuration | DPDT |
| Terminal Type | Screw |
| Maximum Turn On Time | 2 ms |
| Dimensions | 22.5 x 100.3 x 78.8mm |
| Depth | 100.3mm |
| Load Voltage Range | 250 → 400V ac |
| Operating Temperature Range | -20 → +60°C |
| Control Voltage Range | 208 → 480 V ac |
| Length | 86.3mm |
| Height | 78.8mm |
