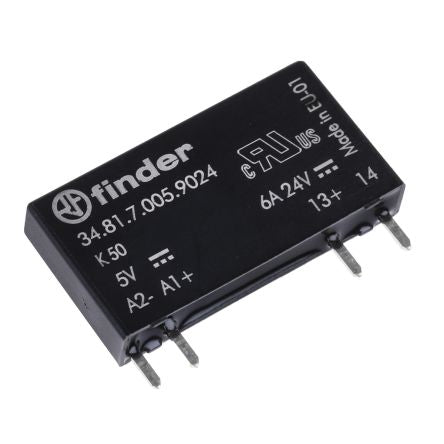

Finder 6 A SPNO Solid State Relay, DC, PCB Mount, 24 V dc Maximum Load [34.81.7.005.9024]; 533-7600
by Finder
0₫
Mã kho: 5337600
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 1 mA |
| Maximum Load Current | 0.25 |
| Mounting Type | PCB Mount |
| Series | Series 34 |
| Minimum Load Voltage | 1.5 V dc |
| Maximum Load Voltage | 24 V dc |
| Minimum Control Voltage | 3.5 V |
| Maximum Control Voltage | 12 V |
| Switching Type | DC |
| Contact Configuration | SPNO |
| Terminal Type | Cage Clamp |
| Package Style | SIP4 |
| Maximum Turn On Time | 0.1 ms |
| Dimensions | 28 x 15 x 5mm |
| Minimum Operating Temperature | -20°C |
| Special Features | Ultra Slim |
| Operating Temperature Range | -20 → +60°C |
| Length | 28mm |
| Off State Leakage Current | 0.001 mA |
| Height | 5mm |
| Load Voltage Range | 1.5 → 24V dc |
| Control Voltage Range | 3.5 → 12 V |
| Depth | 15mm |
| Maximum Operating Temperature | +60°C |
