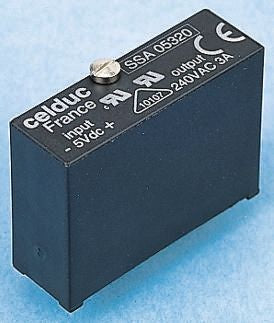

Celduc 3 A Solid State Relay, Zero Crossing, PCB Mount, 280 V rms Maximum Load [SSA05320]; 231-3594
by Celduc
0₫
Mã kho: 2313594
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 0.125 |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 12 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 2.5 V dc |
| Maximum Control Voltage | 8 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Through Hole |
| Maximum Turn On Time | 10 ms |
| Dimensions | 44 x 15 x 33mm |
| Maximum Operating Temperature | +90°C |
| Depth | 15mm |
| Operating Temperature Range | -40 → +90°C |
| Load Voltage Range | 12 → 280Vrms |
| Control Voltage Range | 2.5 → 8 V dc |
| Minimum Operating Temperature | -40°C |
| Length | 44mm |
| Off State Leakage Current | 1 mA rms |
| Height | 33mm |
