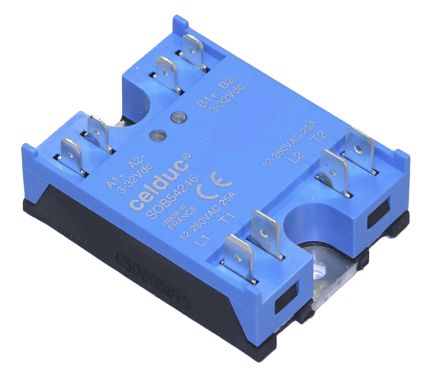

Celduc 2 x 25 A Solid State Relay, Zero Cross, Panel Mount, Thyristor, 600 V ac Maximum Load [SOB562460]; 917-4835
by Celduc
0₫
Mã kho: 9174835
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 5 mA |
| Maximum Load Current | 2 x 25 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 3.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Terminal Type | Faston |
| Output Device | Thyristor |
| Maximum Turn On Time | 10 ms |
| Dimensions | 45 x 58 x 19.5mm |
| Operating Temperature Range | -40 → +100°C |
| Length | 45mm |
| Off State Leakage Current | 1 mA |
| Height | 19.5mm |
| Relay Type | AC |
| Depth | 58mm |
| Load Voltage Range | 24 → 600V ac |
| Control Voltage Range | 3.5 → 32 V dc |
| Standards Met | CE |
| Special Features | Power and Control Connections by FASTon Terminals, Zero-Cross AC Output |
