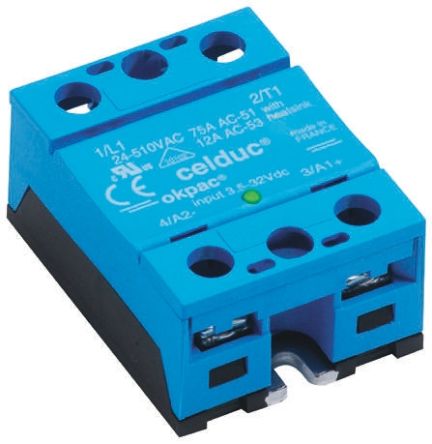

Celduc 60 A Solid State Relay, Zero Crossing, Chassis Mount, Triac, 280 V rms Maximum Load [SO945460]; 499-0474
by Celduc
0₫
Mã kho: 4990474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 5 mA |
Maximum Load Current | 60 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 12 V ac |
Maximum Load Voltage | 280 V rms |
Maximum Control Voltage | 32 V |
Switching Type | Zero Crossing |
Output Device | Triac |
Dimensions | 58.5 x 45 x 29mm |
Depth | 45mm |
Control Voltage Range | 3 → 32 V dc |
Maximum Operating Temperature | +100°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +100°C |
Height | 29mm |
Length | 58.5mm |
