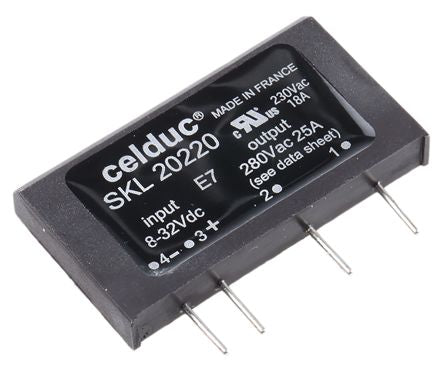

Celduc 25 A Solid State Relay, Zero Crossing, PCB Mount, Thyristor, 280 V ac Maximum Load [SKL20220]; 372-8802
by Celduc
0₫
Mã kho: 3728802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 5 mA |
Maximum Load Current | 25 A |
Mounting Type | PCB Mount |
Minimum Load Voltage | 12 V ac |
Maximum Load Voltage | 280 V ac |
Minimum Control Voltage | 8 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero Crossing |
Terminal Type | Through Hole |
Output Device | Thyristor |
Maximum Turn On Time | 10 ms |
Dimensions | 43.4 x 6.3 x 24.5mm |
Operating Temperature Range | -40 → +80°C |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -40°C |
Depth | 6.3mm |
Load Voltage Range | 12 → 280V ac |
Control Voltage Range | 8 → 32 V dc |
Length | 43.4mm |
Off State Leakage Current | 1 mA |
Height | 24.5mm |
