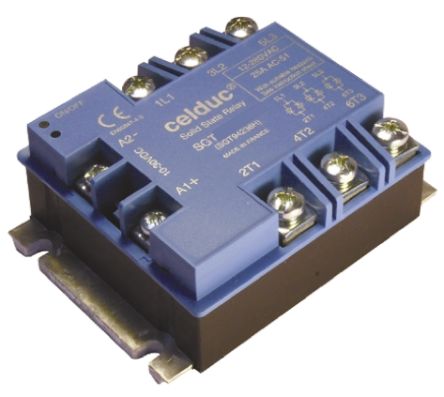

Celduc 50 A Solid State Relay, Zero Crossing, Chassis Mount, Thyristor, 520 V ac Maximum Load [SGT865470E]; 776-7703
by Celduc
0₫
Mã kho: 7767703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 5 mA |
Maximum Load Current | 50 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 24 V ac |
Maximum Load Voltage | 520 V ac |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero Crossing |
Terminal Type | Screw |
Output Device | Thyristor |
Maximum Turn On Time | 10 ms |
Dimensions | 100 x 75.15 x 46mm |
Length | 100mm |
Off State Leakage Current | 1 mA |
Height | 46mm |
Load Voltage Range | 24 → 520V ac |
Control Voltage Range | 4 → 32 V dc |
Operating Temperature Range | -40 → +100°C |
Depth | 75.15mm |
