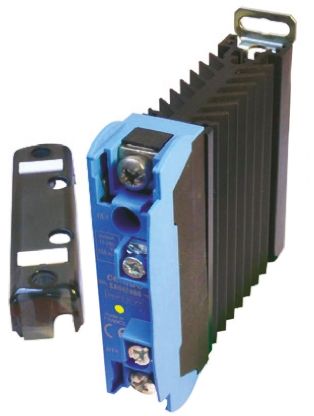

Celduc 32 A Solid State Relay, Zero Crossing, Chassis Mount, 600 V ac Maximum Load [SAL965460]; 702-6781
by Celduc
0₫
Mã kho: 7026781
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 5 mA |
| Maximum Load Current | 32 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 3.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Maximum Turn On Time | 10 ms |
| Dimensions | 91 x 22.4 x 73.5mm |
| Depth | 22.4mm |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 3.5 → 32 V dc |
| Load Voltage Range | 24 → 600V ac |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 1 mA |
| Height | 73.5mm |
| Length | 91mm |
| Operating Temperature Range | -40 → +80°C |
