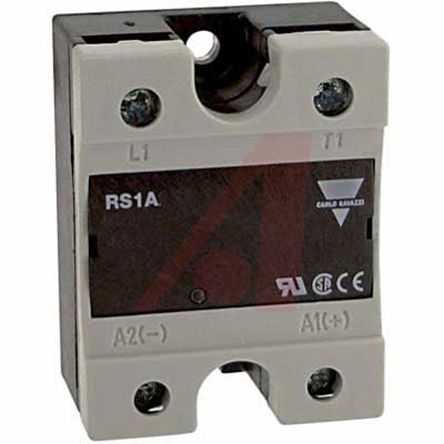

Carlo Gavazzi 25 A SPNO Solid State Relay, Zero, Panel Mount, 530 V ac Maximum Load [RS1A48D25]; 857-7230
0₫
Mã kho: 8577230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 150 mA |
Maximum Load Current | 25 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 42 V ac |
Maximum Load Voltage | 530 V ac |
Minimum Control Voltage | 4 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero |
Contact Configuration | SPNO |
Terminal Type | Screw |
Maximum Turn On Time | 1 s |
Dimensions | 44.8 x 58.2 x 28.8mm |
Depth | 58.2mm |
Load Voltage Range | 42 → 530V ac |
Control Voltage Range | 4 → 32 V dc |
Operating Temperature Range | -40 → +80°C |
Length | 44.8mm |
Off State Leakage Current | <3 mA |
Height | 28.8mm |
