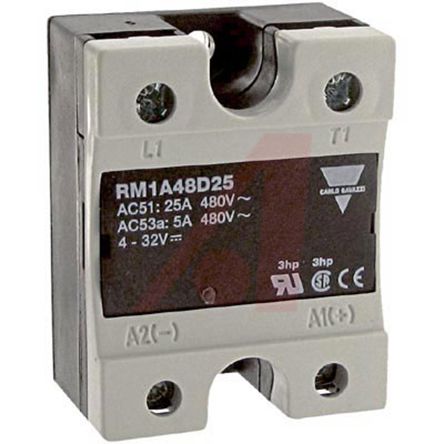

Carlo Gavazzi 25 A SPNO Solid State Relay, Zero Crossing, Panel Mount, Varistor, 530 V ac Maximum Load [RM1A48D25]; 857-7218
0₫
Mã kho: 8577218
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 42 V ac |
| Maximum Load Voltage | 530 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | Varistor |
| Maximum Turn On Time | 1 s |
| Dimensions | 44.8 x 58.2 x 28.8mm |
| Operating Temperature Range | -20 → +70°C |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 42 → 530V ac |
| Depth | 58.2mm |
| Height | 28.8mm |
| Off State Leakage Current | <3 mA |
| Length | 44.8mm |
