THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 500 mA |
Maximum Load Current | 73 A |
Series | RGC1P |
Mounting Type | DIN Rail |
Minimum Load Voltage | 85 V ac |
Maximum Load Voltage | 265 V ac |
Minimum Control Voltage | 0 V dc |
Maximum Control Voltage | 10 V dc |
Switching Type | Proportional |
Terminal Type | Screw |
Output Device | Varistor |
Maximum Turn On Time | 1 s |
Dimensions | 72 x 125.5 x 110mm |

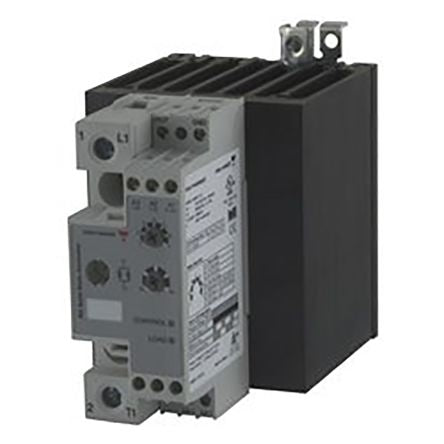

Relay Type | Solid State Relay |
Operating Temperature Range | -40 → +70°C |
Load Voltage Range | 85 → 265V ac |
Minimum Operating Temperature | -40°C |
Height | 110mm |
Special Features | Integrated Heatsink |
Off State Leakage Current | 5 mA |
Number of Poles | 1 |
Maximum Operating Temperature | +70°C |
Control Voltage Range | 0 → 10 V dc |
Length | 72mm |
Depth | 125.5mm |
