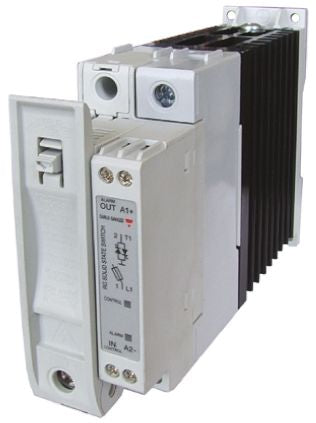

Carlo Gavazzi 30 A SP-NC Solid State Relay, Zero Crossing, DIN Rail, PNP Open Collector, 600 V ac Maximum Load [RGC1FS60D30GGE]; 775-3161
0₫
Mã kho: 7753161
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.2 A |
| Maximum Load Current | 30 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 42 V ac |
| Maximum Load Voltage | 600 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SP-NC |
| Terminal Type | Box Clamp |
| Output Device | PNP Open Collector |
| Package Style | Module |
| Dimensions | 35.6 x 169.5 x 110mm |
| Control Voltage Range | 3 → 32 V dc |
| Operating Temperature Range | -30 → +80°C |
| Load Voltage Range | 42 → 600V ac |
| Length | 35.6mm |
| Minimum Operating Temperature | -30°C |
| Height | 110mm |
| Maximum Operating Temperature | +80°C |
| Depth | 169.5mm |
