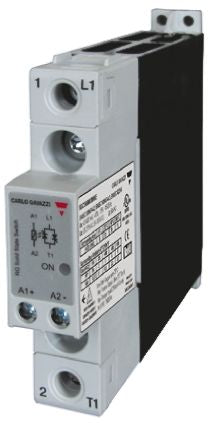

Carlo Gavazzi 25.5 A SPST Solid State Relay, Zero Crossing, Chassis Mount, 600 V ac Maximum Load [RGC1A60A20KKE]; 775-3089
0₫
Mã kho: 7753089
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 150 mA |
Maximum Load Current | 25.5 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 42 V ac |
Maximum Load Voltage | 600 V ac |
Minimum Control Voltage | 20 V ac, 24 V dc |
Maximum Control Voltage | 190 V dc, 275 V ac |
Switching Type | Zero Crossing |
Contact Configuration | SPST |
Terminal Type | Screw |
Package Style | Module |
Dimensions | 17.8 x 140.5 x 110mm |
Load Voltage Range | 42 → 600V ac |
Length | 17.8mm |
Control Voltage Range | 20 → 275 V ac, 24 → 190 V dc |
Maximum Operating Temperature | +80°C |
Depth | 140.5mm |
Minimum Operating Temperature | -40°C |
Off State Leakage Current | 3 mA |
Operating Temperature Range | -40 → +80°C |
Height | 110mm |
