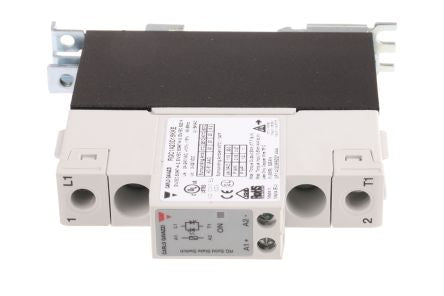

Carlo Gavazzi 20 A SPST Solid State Relay, Zero Crossing, Chassis Mount, 240 V ac Maximum Load [RGC1A23D15KKE]; 775-3035
0₫
Mã kho: 7753035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 20 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 240 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Package Style | Module |
| Dimensions | 17.8 x 103 x 110mm |
| Depth | 103mm |
| Control Voltage Range | 3 → 32 V dc |
| Load Voltage Range | 24 → 240V ac |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 3 mA |
| Length | 17.8mm |
| Operating Temperature Range | -40 → +80°C |
| Height | 110mm |
