![Carlo Gavazzi RF1A23L25 1885263](http://nguyenxuong.com/cdn/shop/products/Y1885263-01_444x444.jpg?v=1594054912)

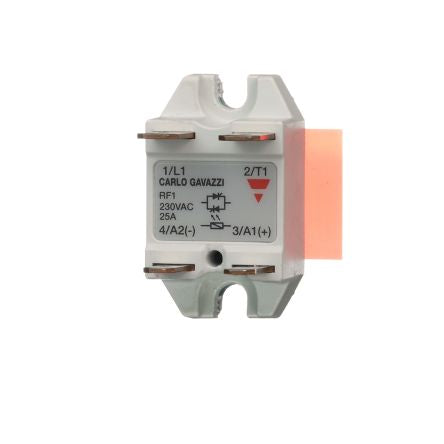

SSR RF ZS 230V 25A 5VDC IP [RF1A23L25]; 188-5263
0₫
Mã kho: 1885263
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 150 mA |
Maximum Load Current | 25 A |
Mounting Type | Chassis Mount |
Series | RF1 |
Minimum Load Voltage | 24 V ac |
Maximum Load Voltage | 280 V ac |
Minimum Control Voltage | 4.25 V dc |
Maximum Control Voltage | 9 V dc |
Switching Type | Zero Crossing |
Terminal Type | Screw |
Maximum Turn On Time | 1 s |
Dimensions | 21.1 x 24 x 35.6mm |
Operating Temperature Range | -30 → +80°C |
Length | 21.1mm |
Off State Leakage Current | <3 mA |
Maximum Operating Temperature | +80°C |
Height | 35.6mm |
Minimum Operating Temperature | -30°C |
Relay Type | Solid State Relay |
Special Features | Built-in Transil, LED for Control Status Indication |
Number of Poles | 1 |
Load Voltage Range | 24 → 280V ac |
Control Voltage Range | 4.25 → 9 V dc |
Depth | 24mm |
