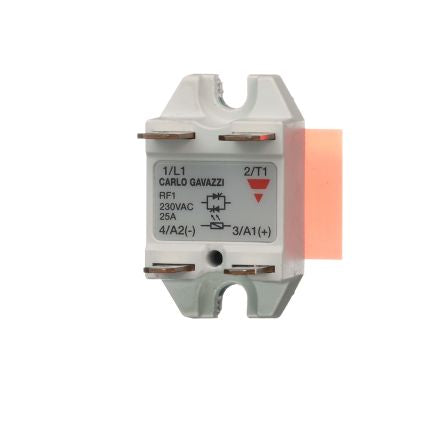

SSR RF ZS 230V 25A 24VDC IP [RF1A23D25]; 188-5262
0₫
Mã kho: 1885262
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Series | RF1 |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 18 V dc |
| Maximum Control Voltage | 28.8 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Maximum Turn On Time | 1 s |
| Dimensions | 21.1 x 24 x 35.6mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | <3 mA |
| Depth | 24mm |
| Control Voltage Range | 18 → 28.8 V dc |
| Load Voltage Range | 24 → 280V ac |
| Length | 21.1mm |
| Height | 35.6mm |
| Relay Type | Solid State Relay |
| Number of Poles | 1 |
| Minimum Operating Temperature | -30°C |
| Special Features | Built-in Transil, LED for Control Status Indication |
