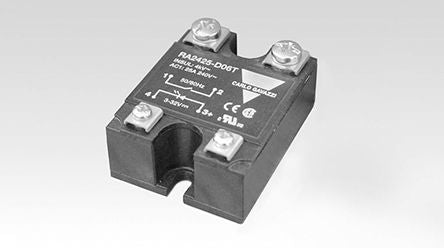

Carlo Gavazzi 25 A Solid State Relay, Zero, Panel Mount, Varistor, 480 V ac Maximum Load [RA4425-D08]; 859-3412
0₫
Mã kho: 8593412
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Minimum Load Current | 150 mA |
Maximum Load Current | 25 A |
Mounting Type | Panel Mount |
Minimum Load Voltage | 42 V ac |
Maximum Load Voltage | 480 V ac |
Minimum Control Voltage | 3 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | Zero |
Terminal Type | Screw |
Output Device | Varistor |
Maximum Turn On Time | 1 s |
Dimensions | 44.5 x 57.8 x 24.5mm |
Height | 29mm |
Control Voltage Range | 3 → 32 V dc |
Load Voltage Range | 42 → 480V ac |
Off State Leakage Current | ≤3 mA |
Length | 44.5mm |
Operating Temperature Range | -20 → +70°C |
Depth | 57.8mm |
